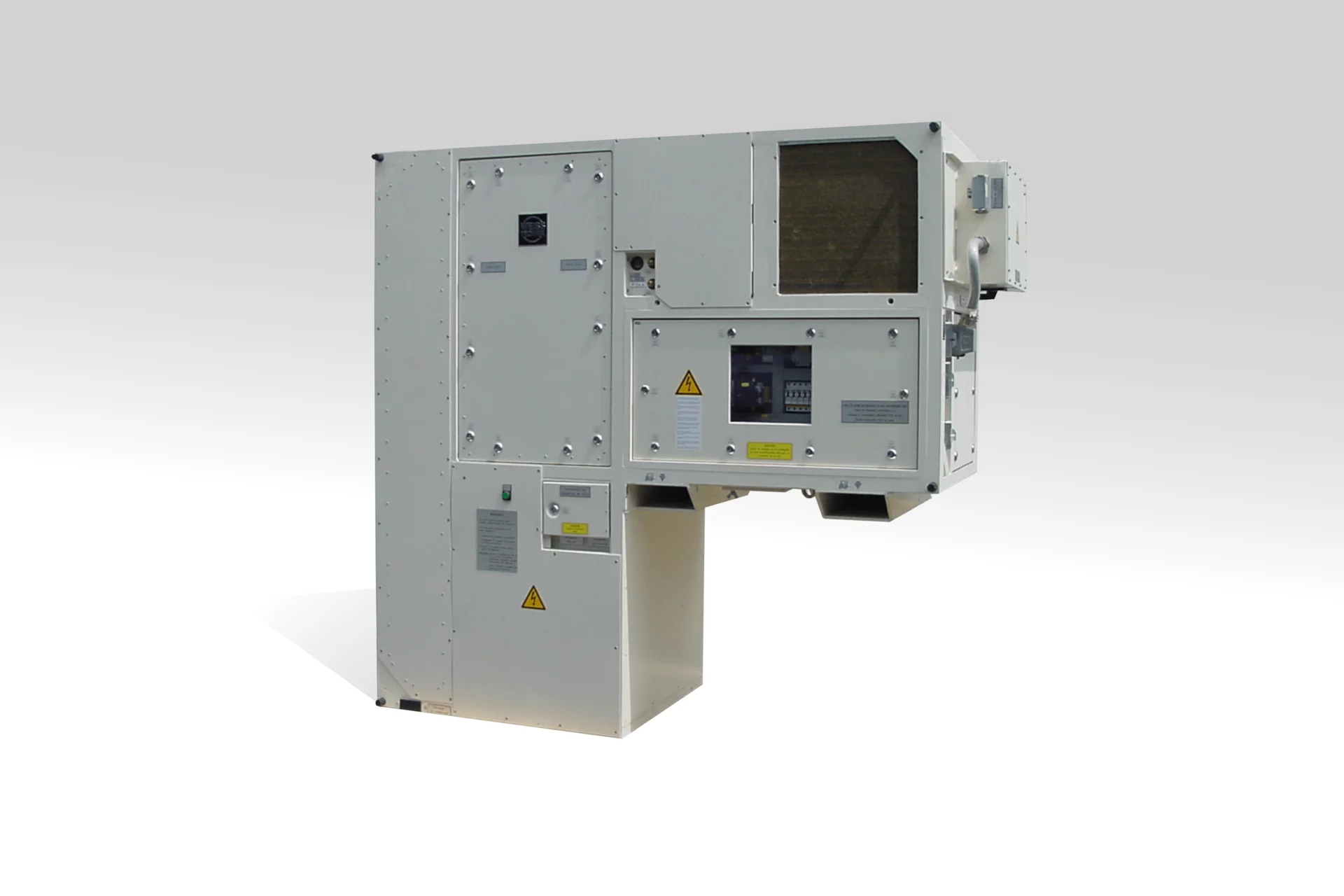

• HKE10 hygienic climate compact unit by Weiss Defence in closed design for hygienic climate control

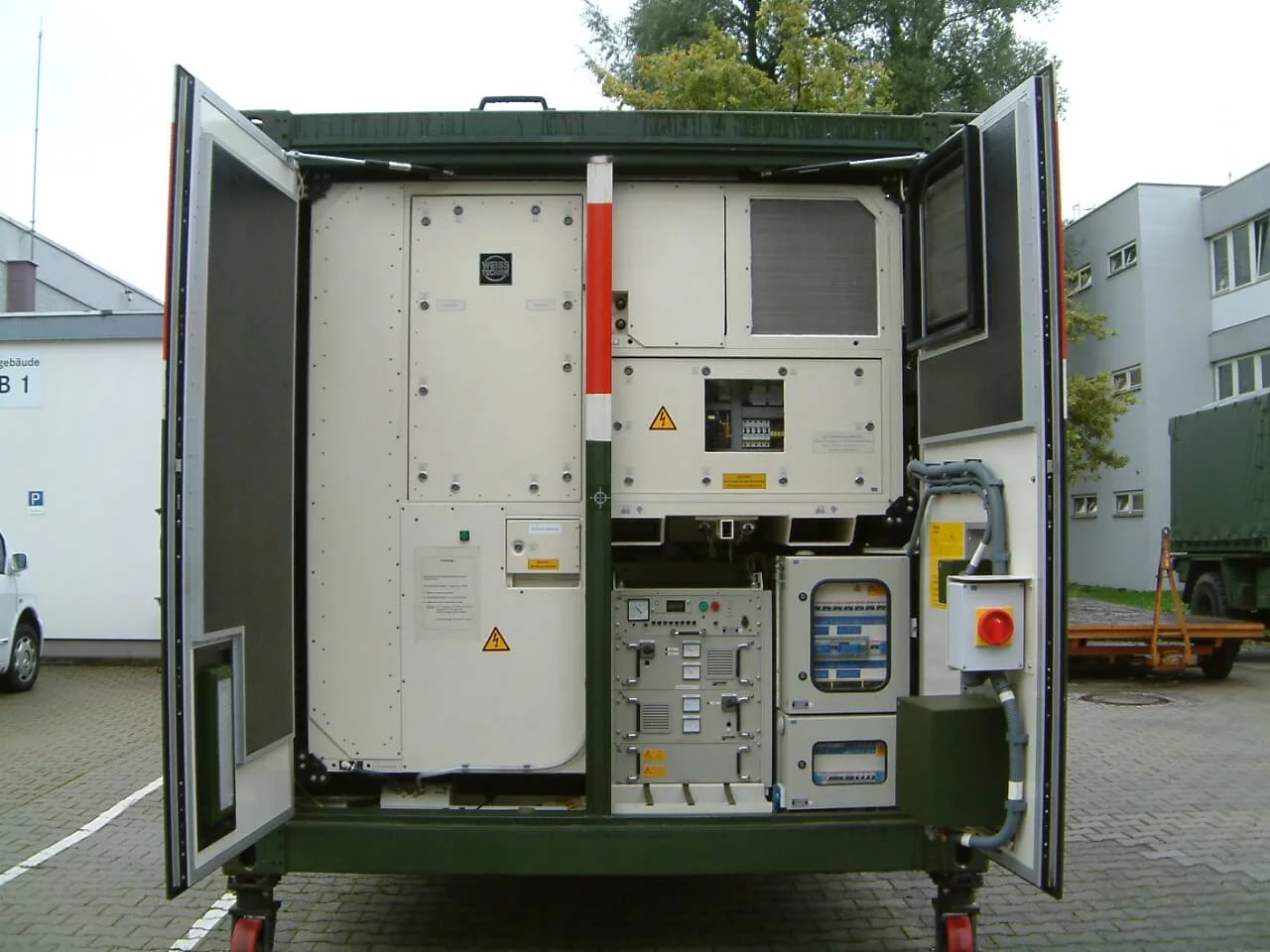

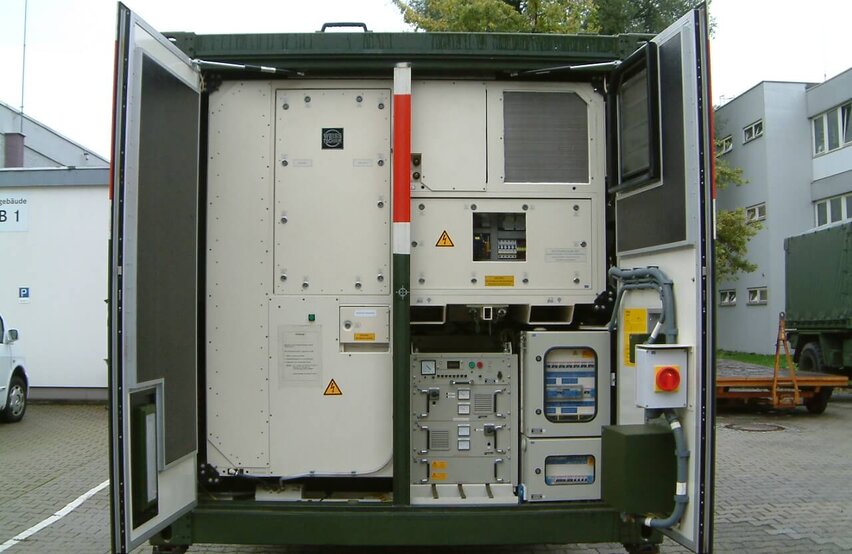

  • Installed HKE10 hygienic climate compact unit by Weiss Defence inside an open shelter with control systems and technical components

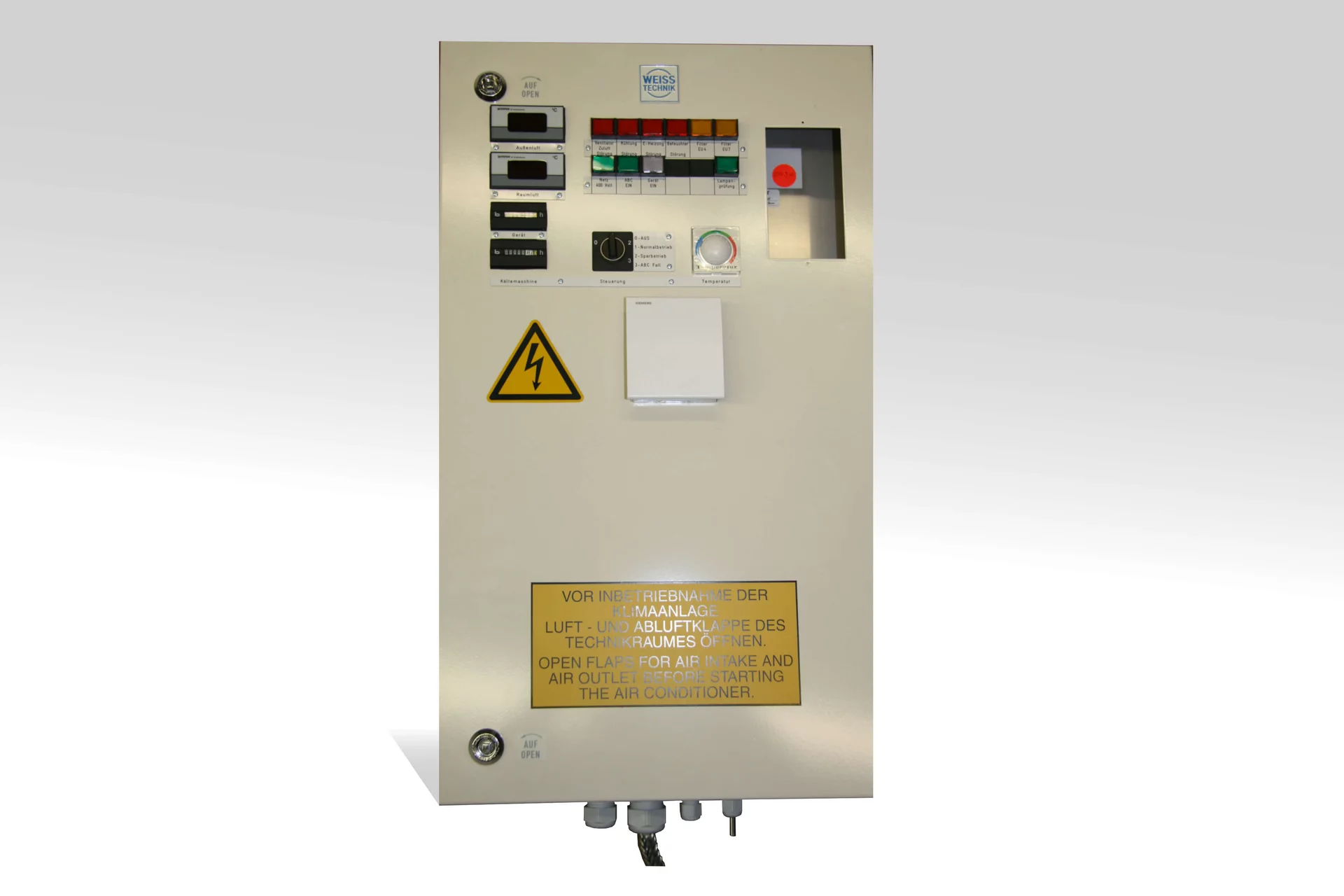

  • Control panel and switch cabinet of the HKE10 hygienic climate compact unit by Weiss Defence with indicators and switches
Downloads

HKE10 HVAC

Key Facts:
Application: Air conditioning of surgical containers
Special features: Cleanroom conditions, de-/humidification and NBC protection
Cooling capacity: 22 kW
Heating capacity: 24 kW
Refrigerant: R134a
Colour: RAL 1013 NATO green

Description:
Hygienic container air conditioners type HKE 10 are designed for use in modular medical facilities, military field camps and mobile hospitals for operating rooms under clean room conditions.

The system provides protection NBC protective ventilation inside the container. An integrated steam dehumidifier retains the desired humidity. HKE 10 units are installed in a separate equipment compartment of operating and intensive care containers.

Due to the extreme operating temperature range of -32 °C to +49 °C, the container air conditioners are suitable for different climate zones such as A1 to A3, B1 to B3, C0 and C1 in accordance with STANAG 2895.

The unit is controlled via a robust control panel mounted inside the container.

Please contact us for further information.
