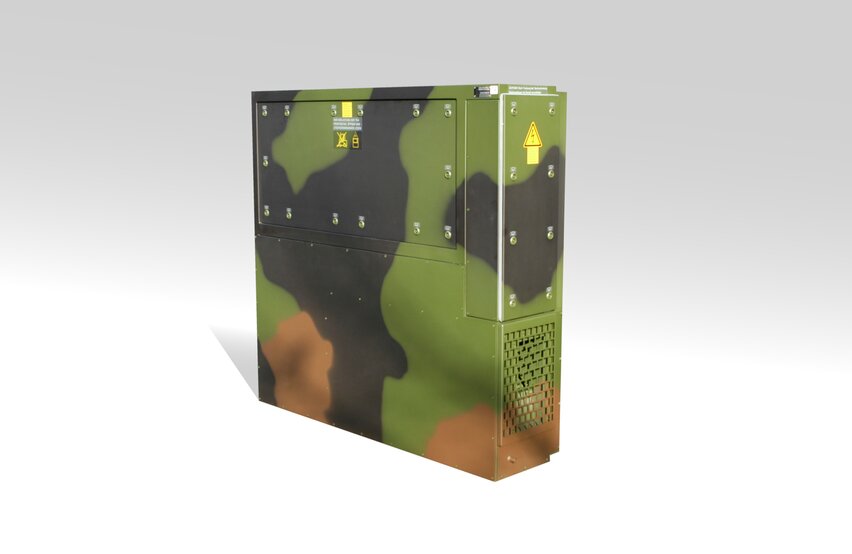

• Tactical mobile TKA air conditioning unit from Weiss Defence with camouflage for military outdoor use.

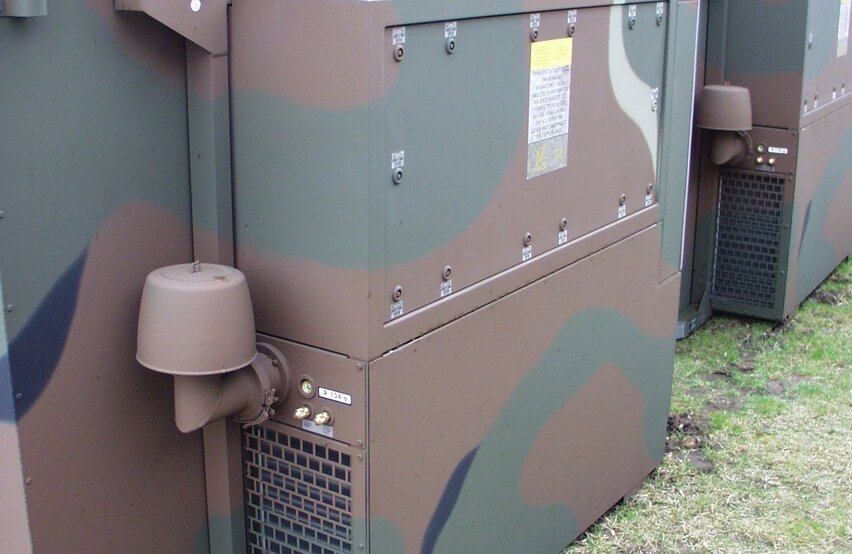

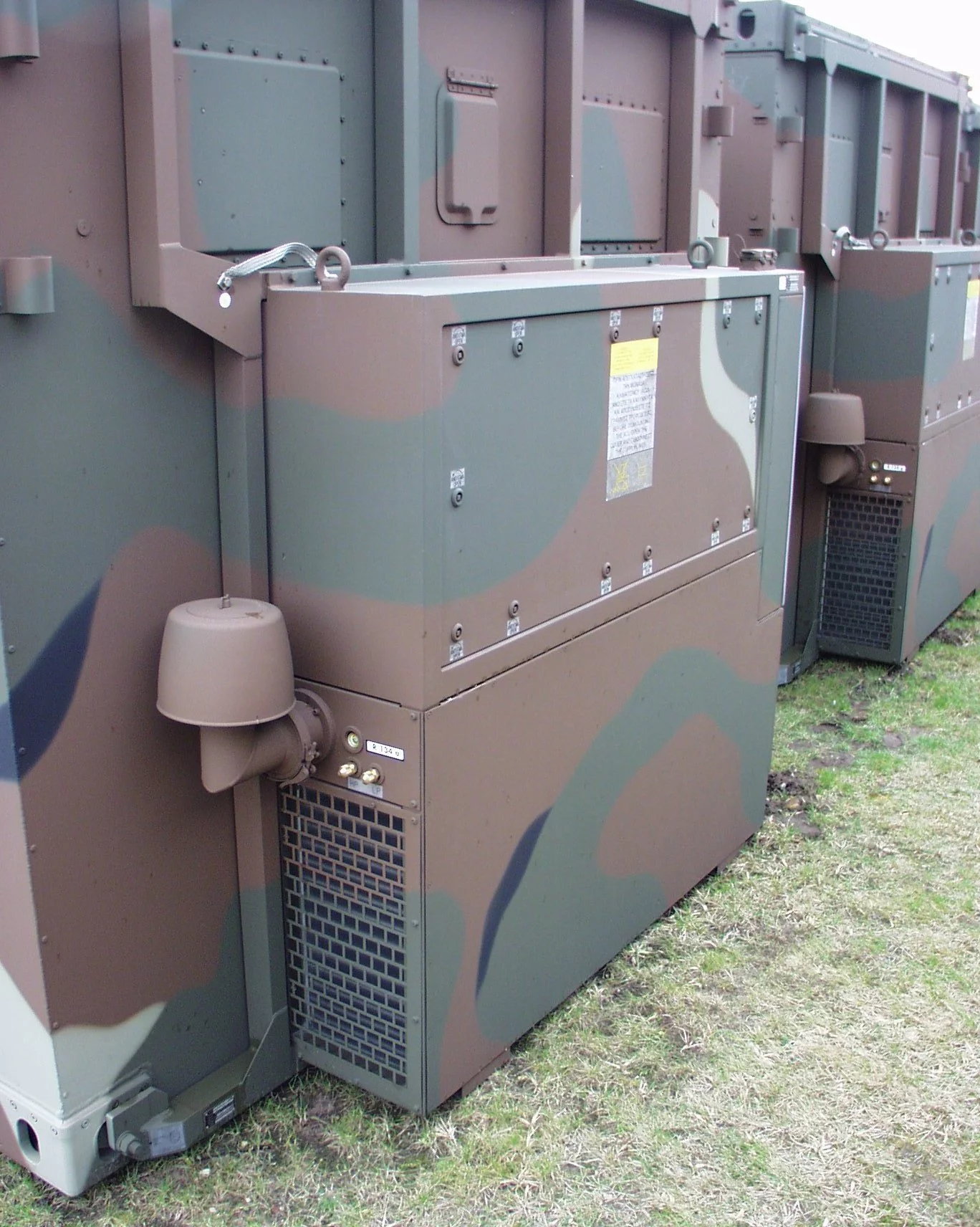

  • Tactical TKA air conditioning units from Weiss Defence mounted outdoors on military containers.

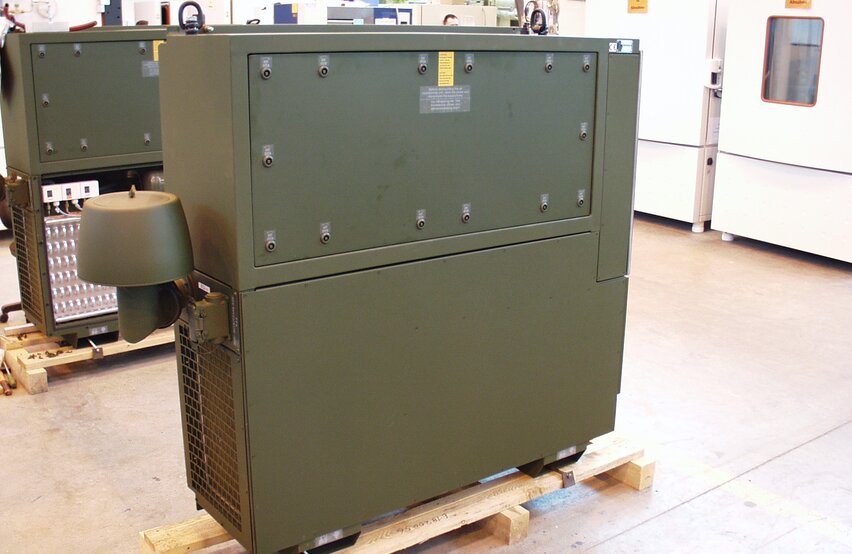

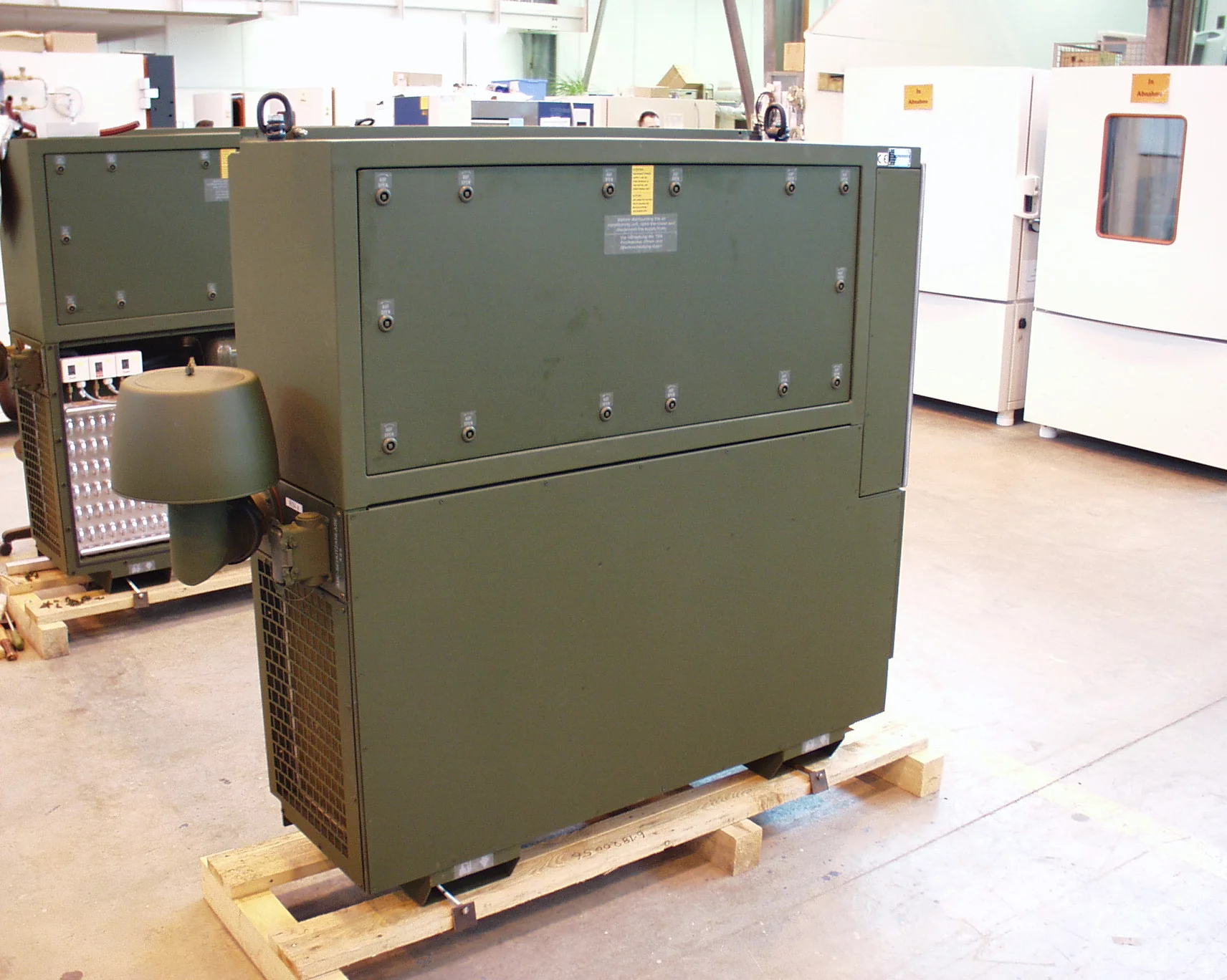

  • Tactical TKA series air conditioning unit from Weiss Defence on a pallet in an industrial hall.

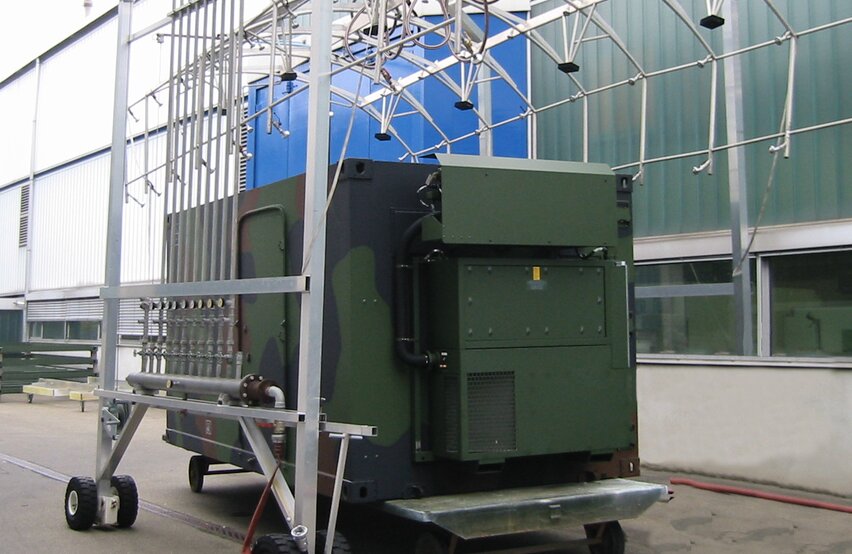

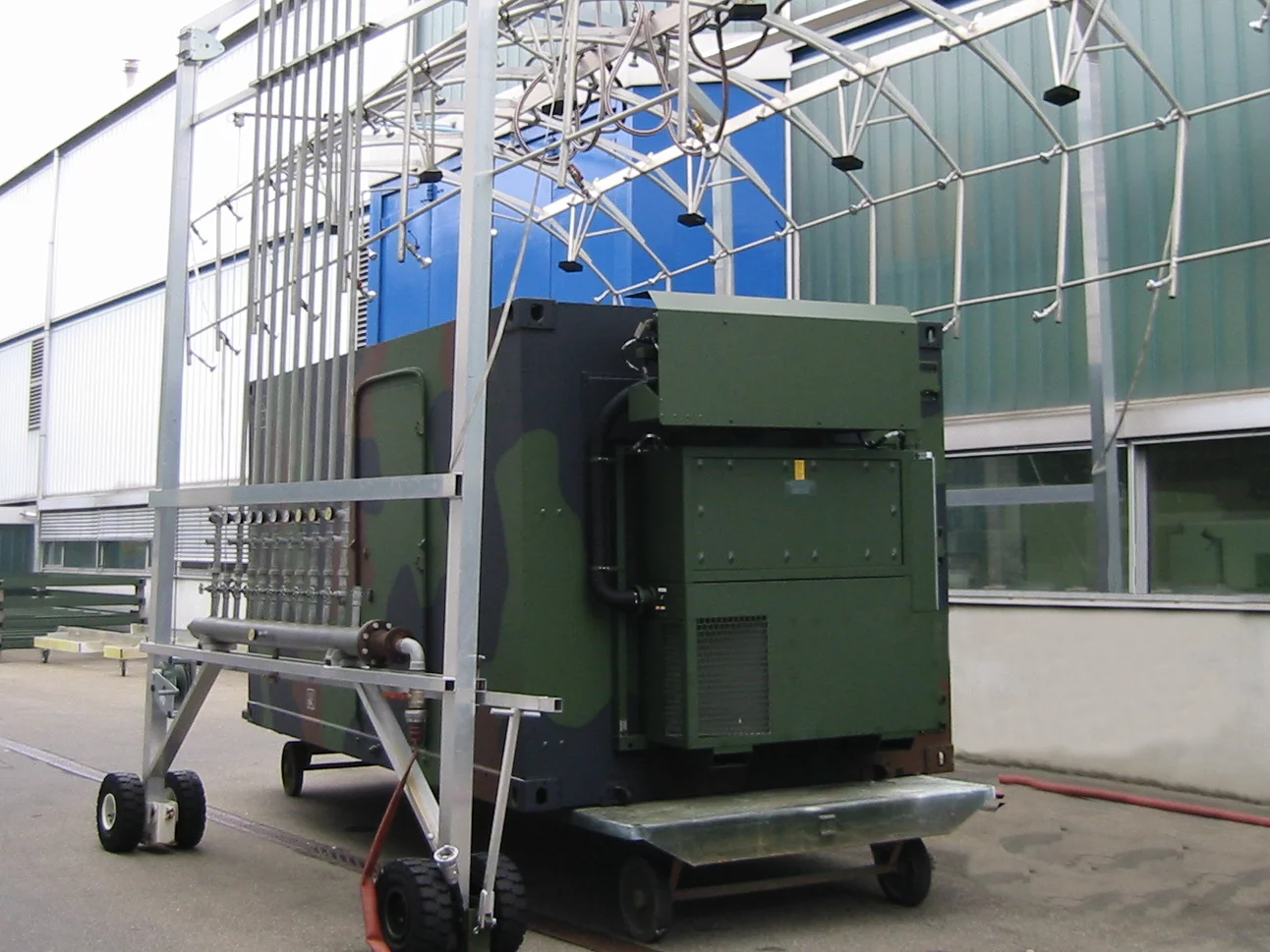

  • Tactical TKA series air conditioning unit from Weiss Defence on a transport trolley during an outdoor technical test setup.

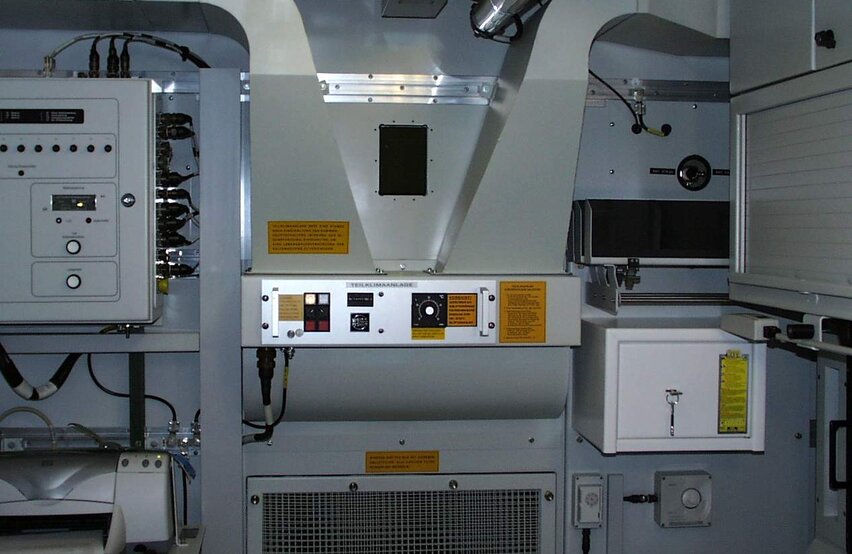

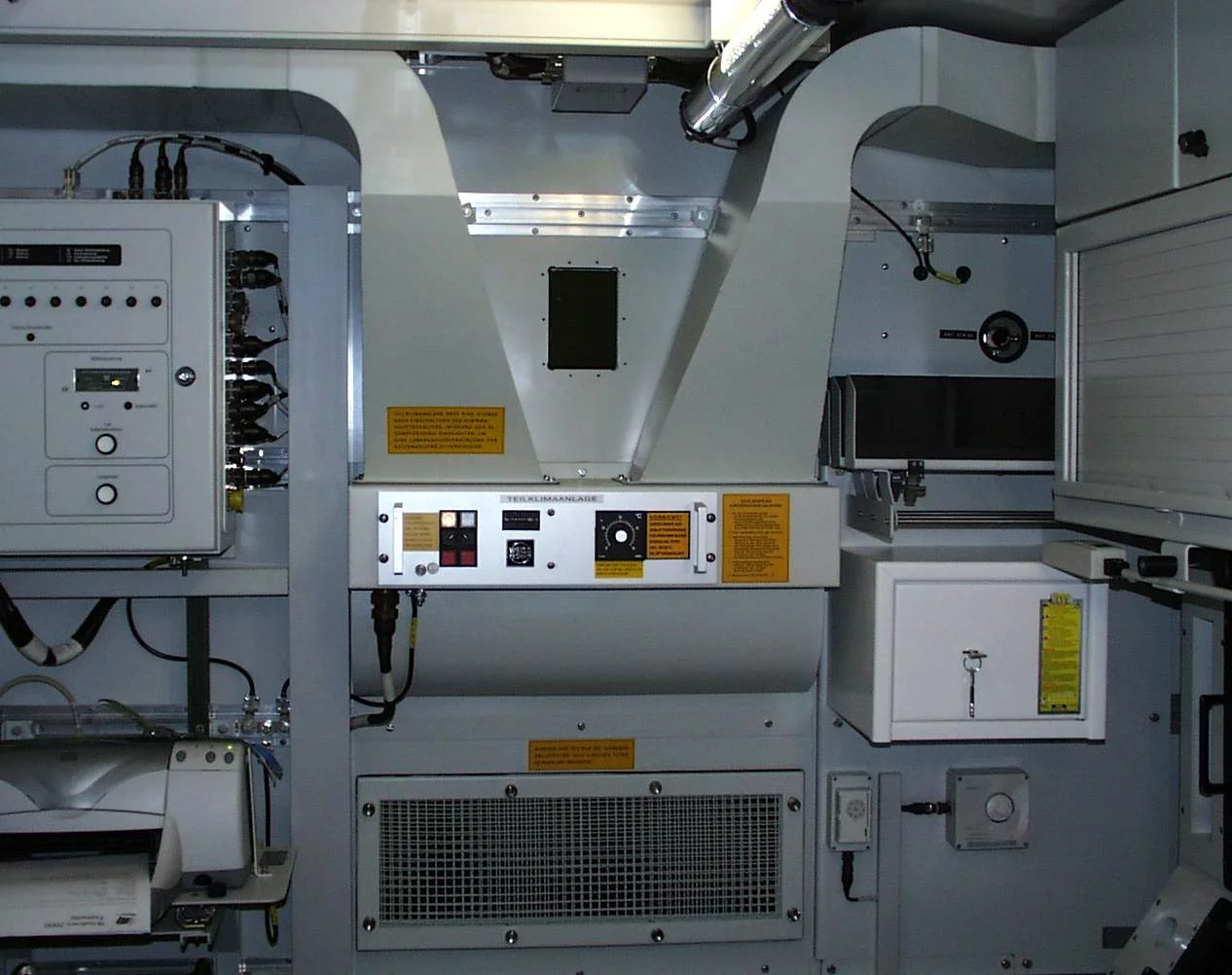

  • Interior view of the tactical TKA air conditioning unit from Weiss Defence with control system and electrical components.

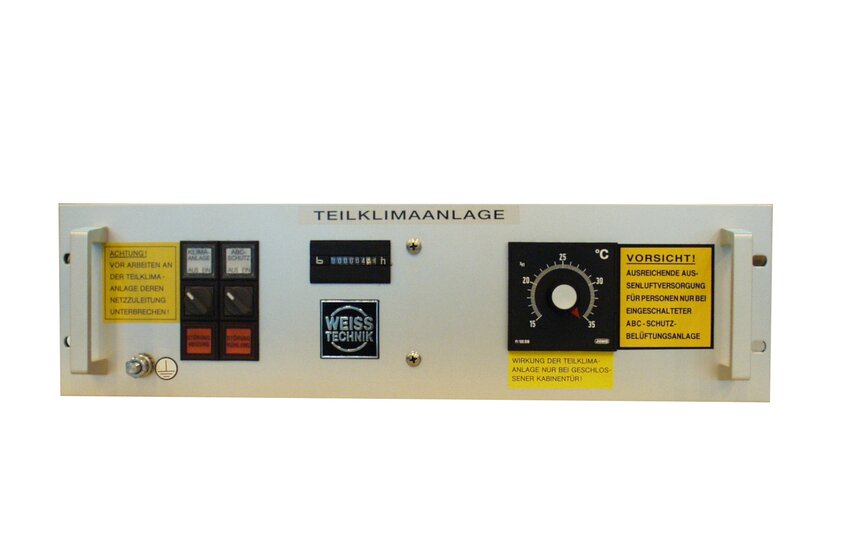

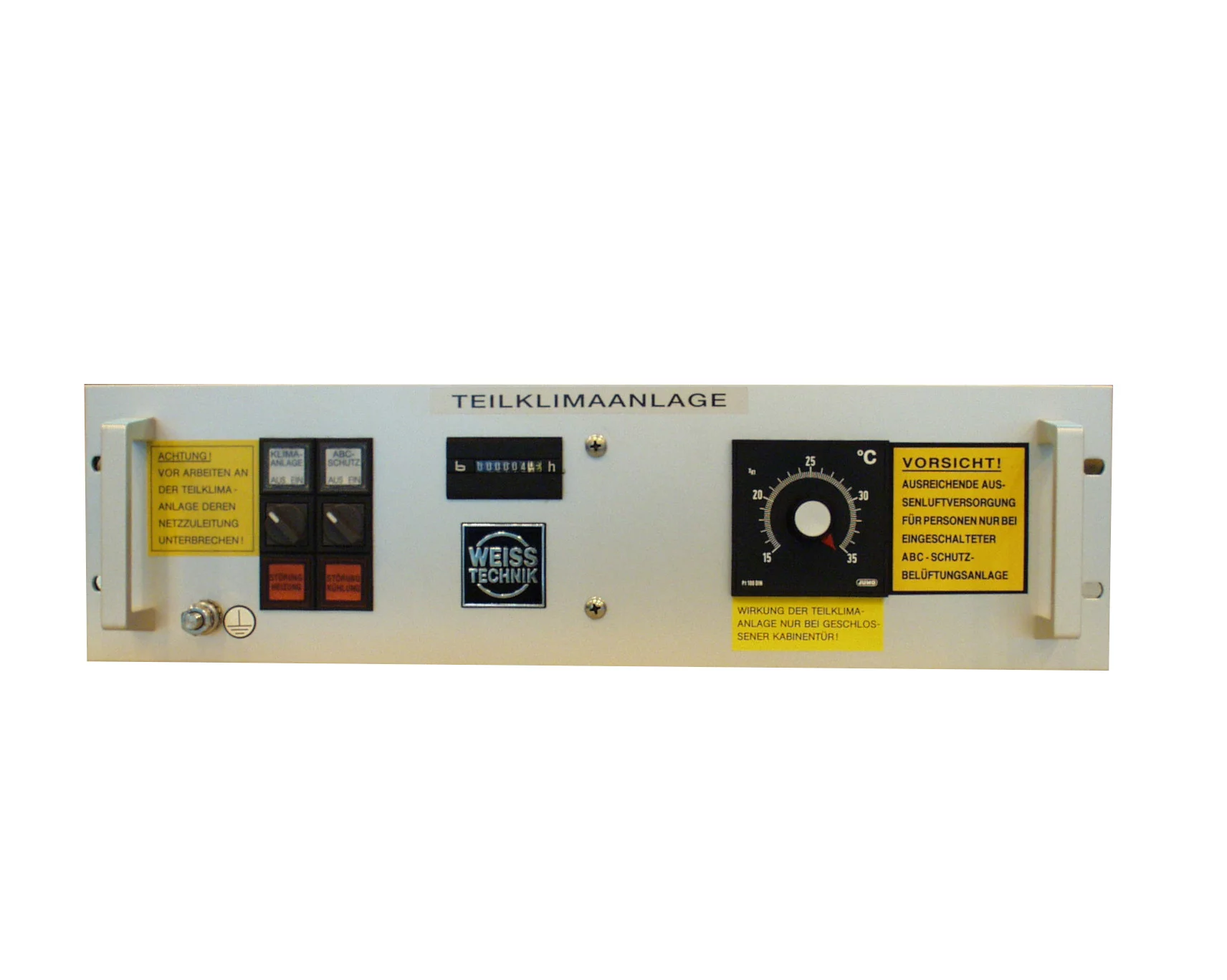

  • Control and operating panel of the tactical TKA air conditioning unit from Weiss Defence with temperature control and safety labels.
Downloads

TKA K13W-B, TKA K15W-B, TKA K30W-B, TKA K31W-B

Key Facts:
Application: Container air conditioning, HAVC unit
Cooling capacity: 4,3 kW, 5,8 kW, 7,0 kW, 8,0 kW
Heating capacity: 2,0 kW, 3,0 kW, 4,0 kW, 6,0 kW
Refrigerant: R134a

Description:
The HVAC units type K13W-B to K31W-B are specially designed for cooling, heating and ventilation of military containers. The devices are attached to the outside of the container by a mounting frame. Air distribution systems distribute the temperature-controlled circulating air inside the container. Large temperature fluctuations caused by outside climate conditions or by the heat transfer from electrical equipment inside the cabin are compensated by a temperature control system.

Designed to the extreme operating temperature range of -32 °C to +49 °C, the air conditioners can operate in all climate zones in military field camps and mobile hospitals.

The HVAC units are controlled by a separate control panel, which is embedded into the air distribution box.

Please contact us for further information.
