ZKB 15

Key Facts:
Application:
Compact units for tent air conditioning, tent HVAC units
Cooling capacity: 10 kW, 11 kW
Heating capacity: 7,2 kW electric
Refrigerant: R134a
Colour: RAL 6031

Description:

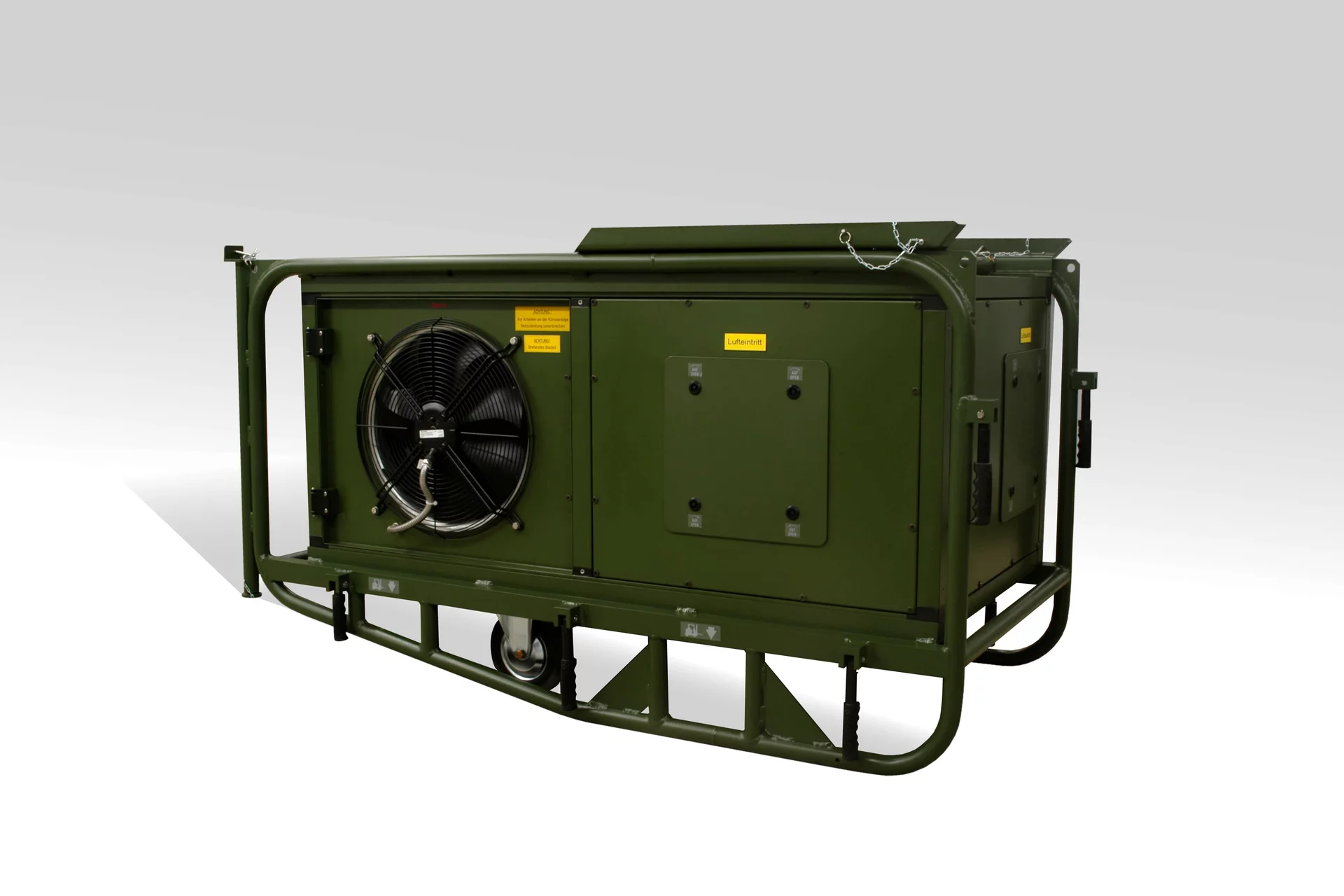

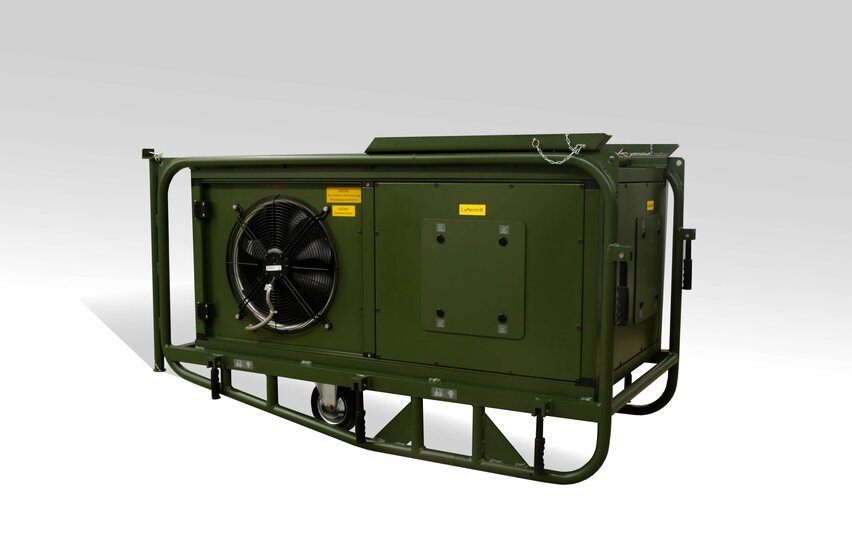

Mobile compact tent air conditioning units type ZKB 15 have been in reliable and proven military use for many years. The devices are suitable for all climate zones in an extreme operating temperature range of -32 °C up to +49 °C.

ZKB 15 HVAC units are specially developed and qualified to operate in military field camps and mobile hospitals. The units are available as fresh air system or as recirculation system. In fresh air operation, outside air is filtered by a separate filter box.

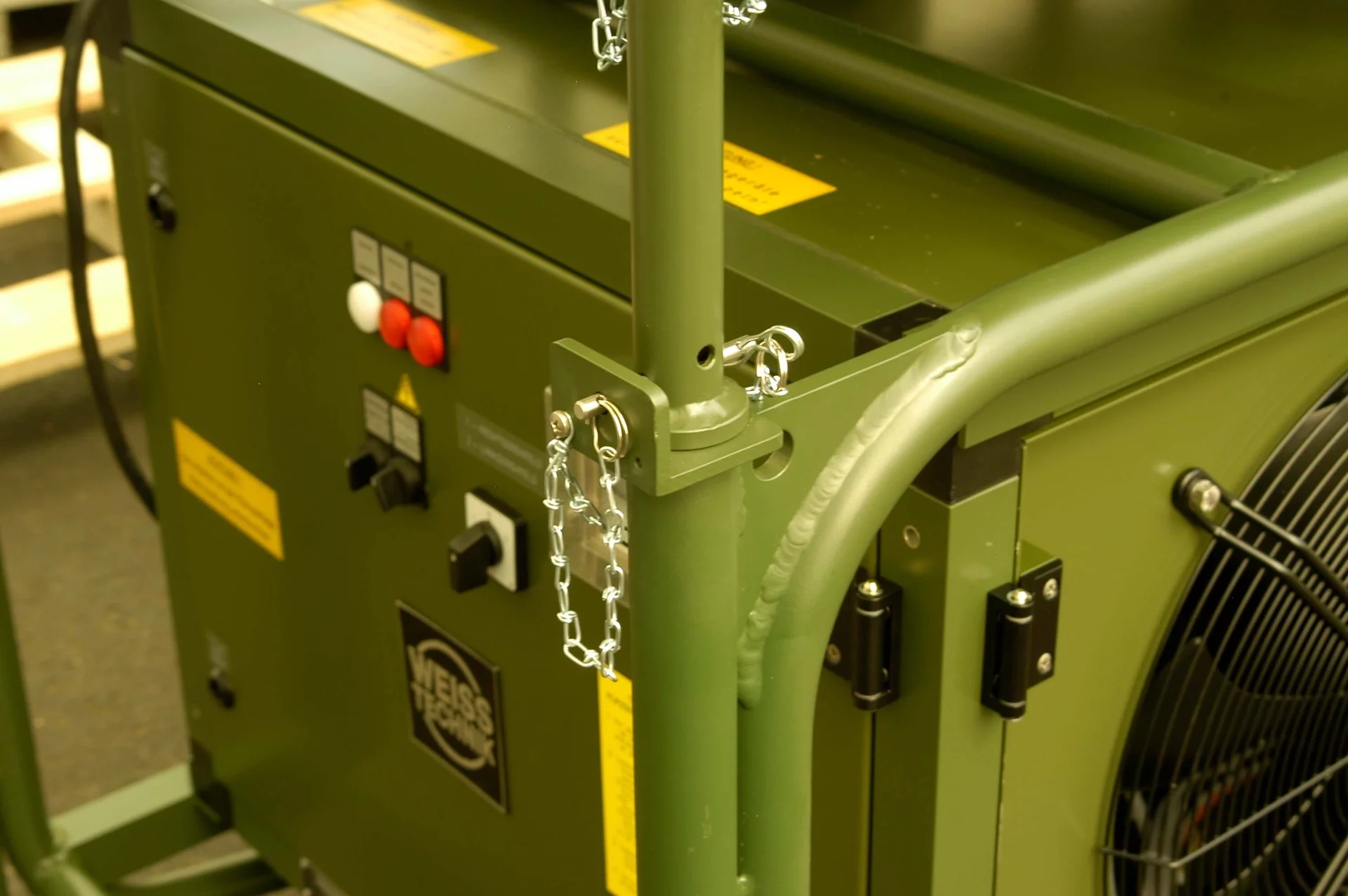

Temperature setting can optionally be operated and adjusted on the outside air-conditioning system or easily from inside the tent via a separate room thermostat.

Please contact us for further information!

Scope of supply:
ZKB 15: HVAC unit ZKB 15, transport frame, air distribution system
ZKB 15 A-10: HVAC unit ZKB 15 A-10, transport frame, temperature control system, air distribution system, filter box, fresh air filter (filter class: F5), fresh air filter (filter class: F6)

Additional equipment:
Air distribution system, fresh air filter box
