ZKB 20/18

Key Facts:
Application:
Powerful compact tent air conditioning units for military field camps, mobile hospitals and mobile clean rooms; tent HVAC units
Cooling capacity: 18 kW
Heating capacity: 7,2 kW (electric), max. 30 kW (fuel)
Refrigerant: R134a
Colour: RAL 6031

Description:

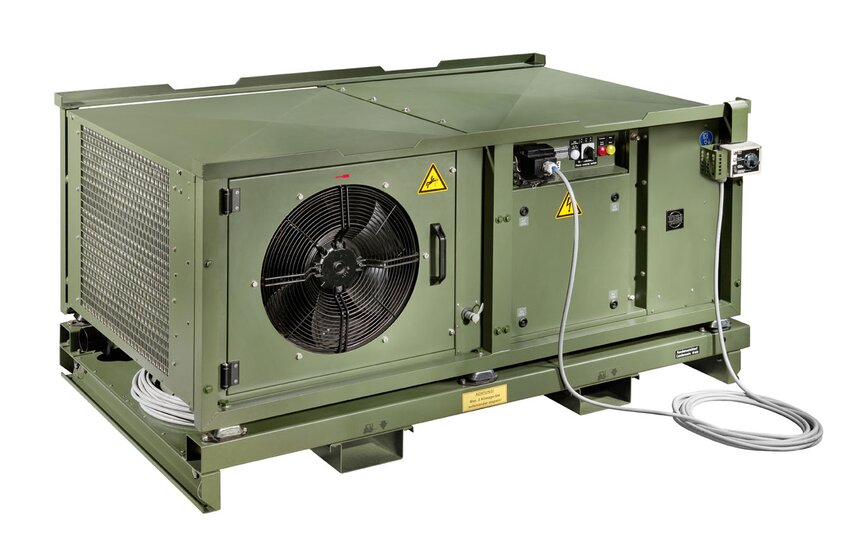

The mobile and compact tent air conditioners type ZKB 20/18 are characterised by a powerful cooling output of up to 18 kW and a heating output of up to 30 kW. The systems were developed and qualified for an extreme operating temperature range from -32 °C up to +60 °C.

The HVAC units are especially suitable to operate in military field camps, mobile hospitals and mobile clean rooms. Depending on the requirements, the air conditioners can be optionally equipped with an electric heater or, for extreme conditions, with a fuel heater.

By using an optional and separate filter unit with filters of the filter class H13, clean room conditions for the use in operating rooms are achieved.

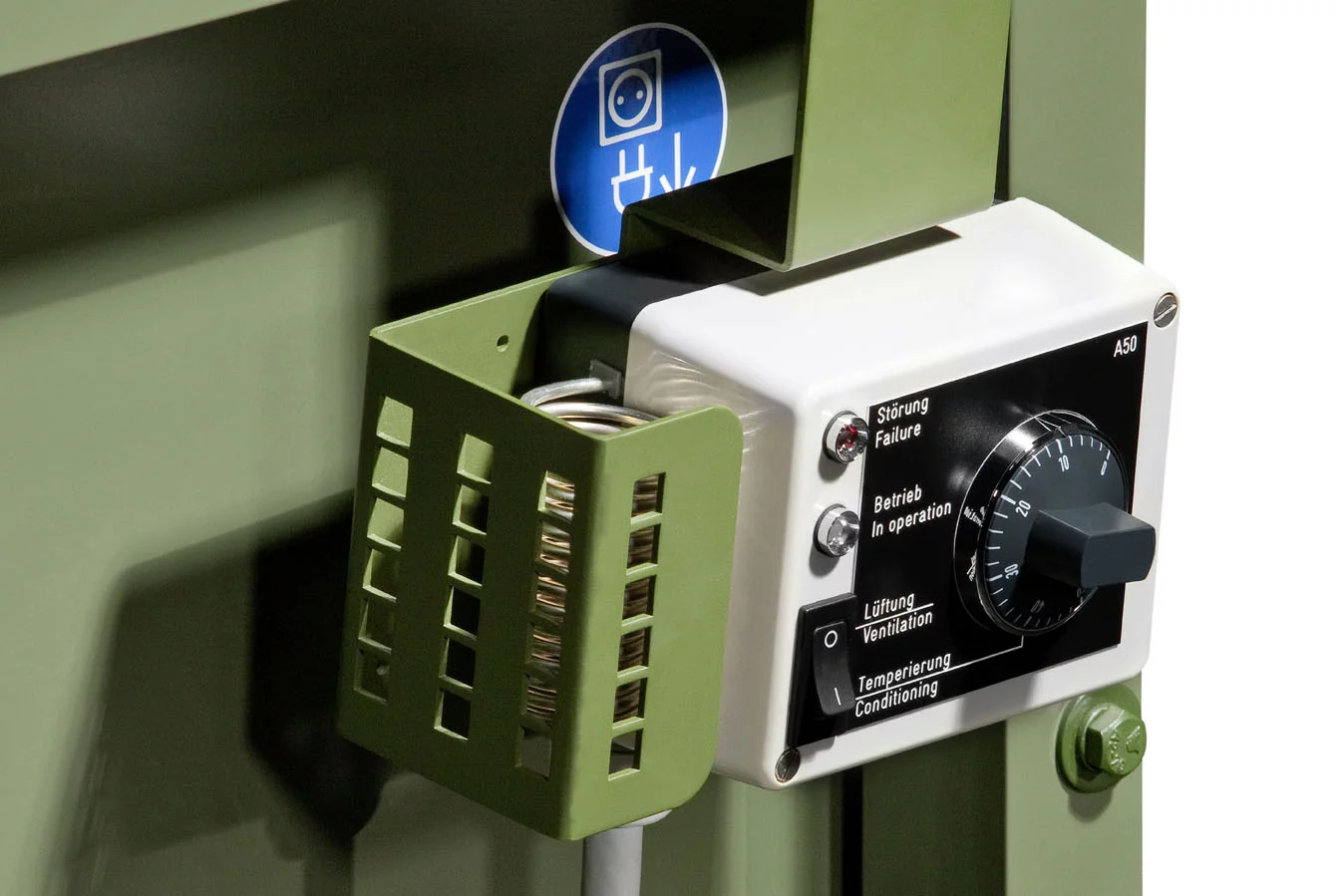

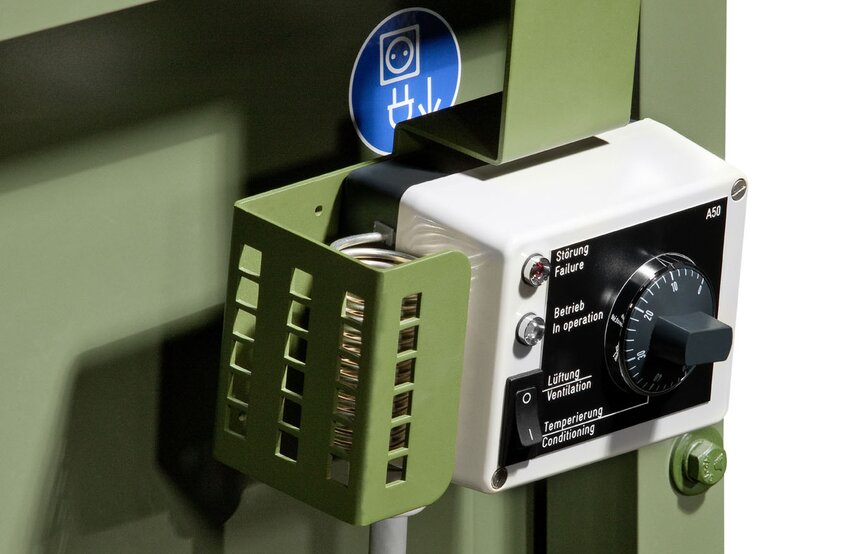

The temperature is set separately in the tent or directly on the tent air conditioner by a robust control panel.

Please contact us for further information!

Additional features:

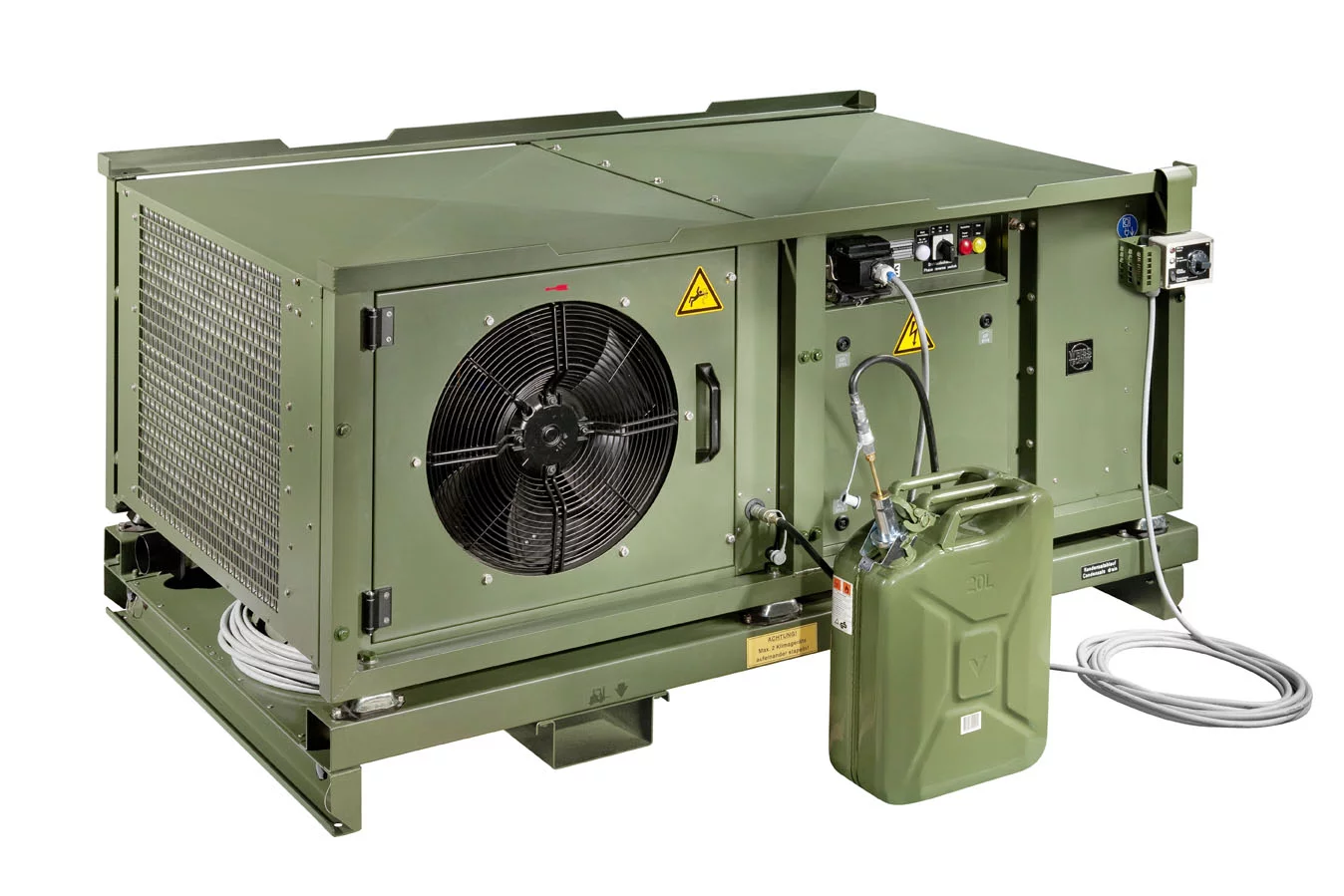

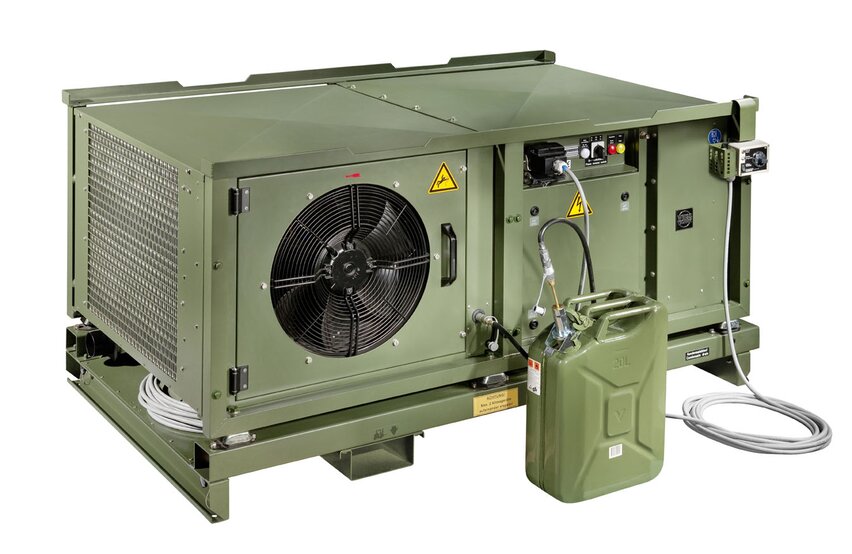

  • Fuel heating

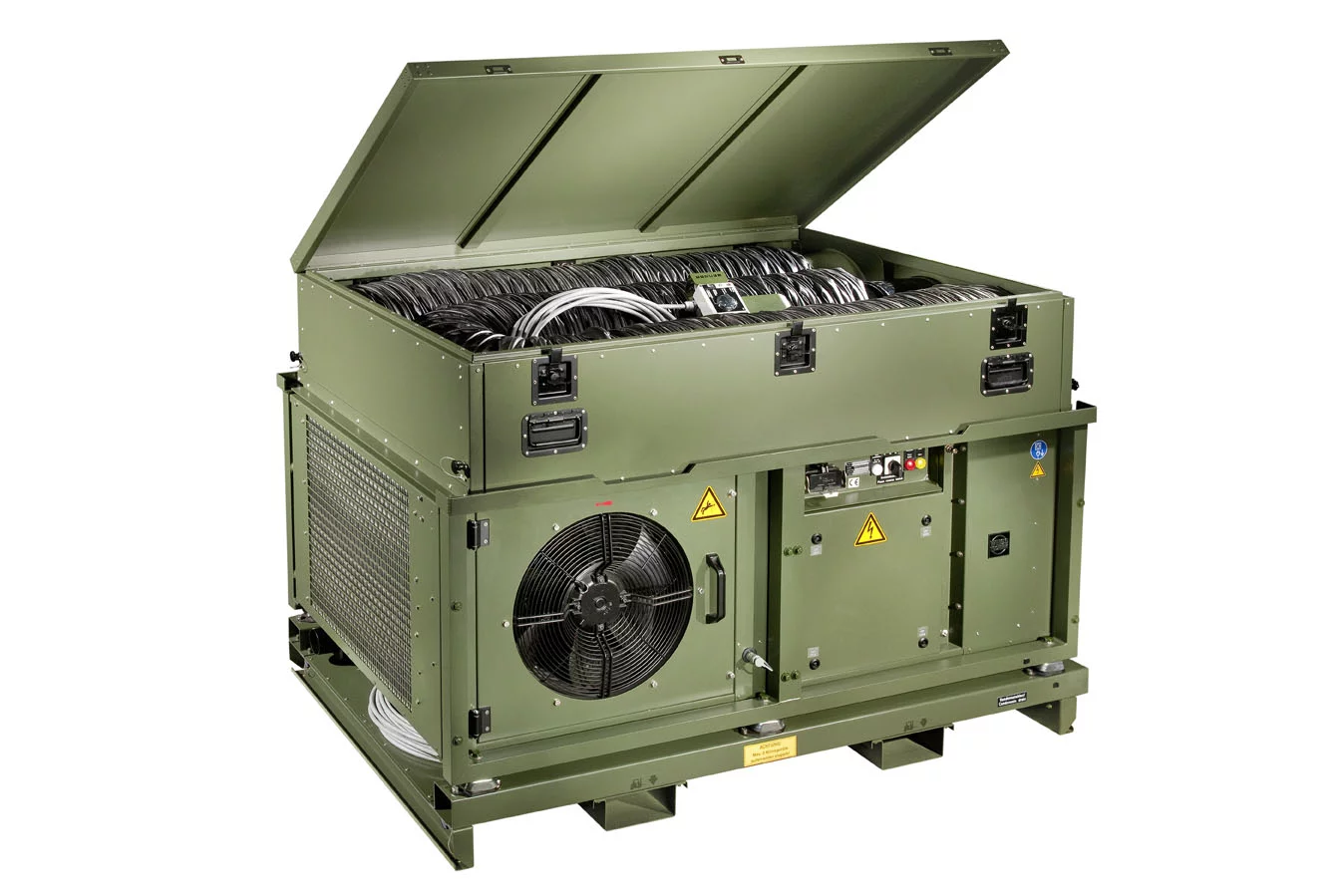

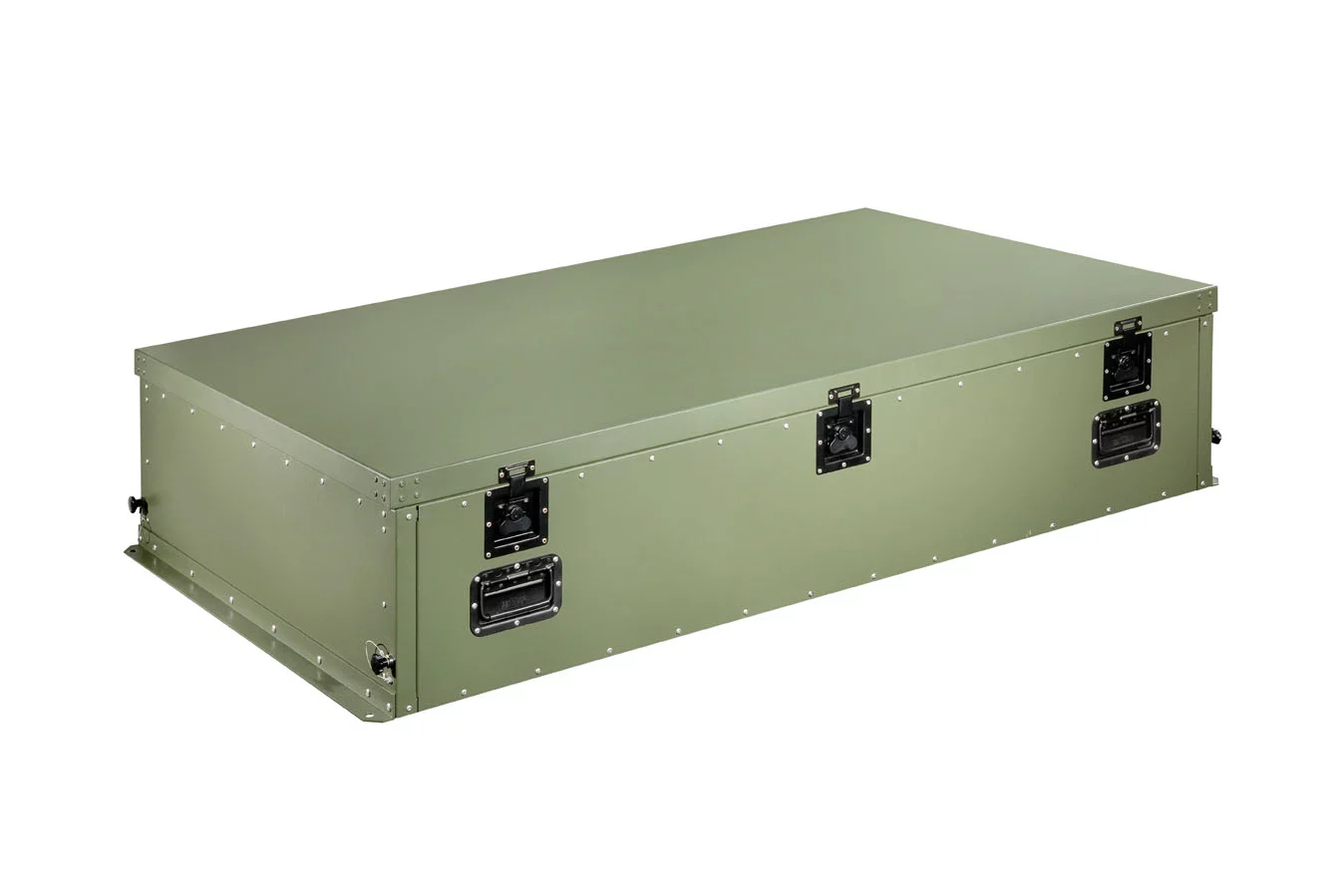

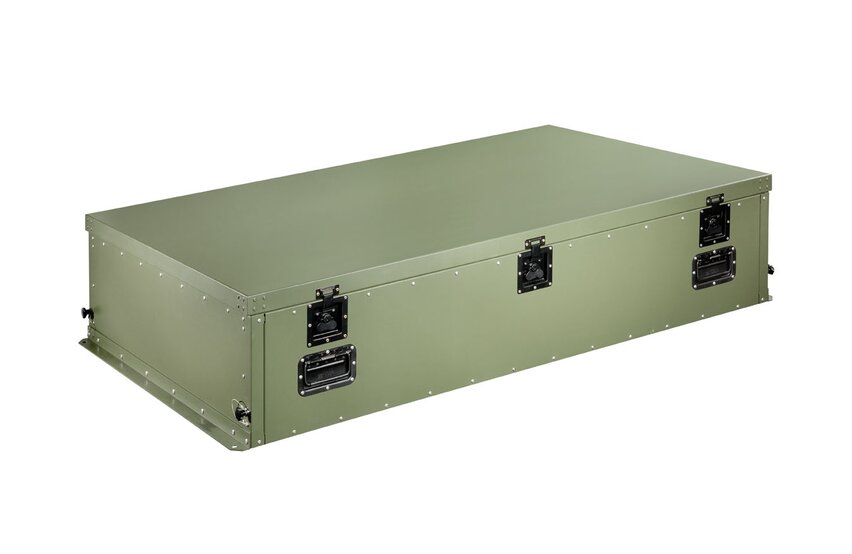

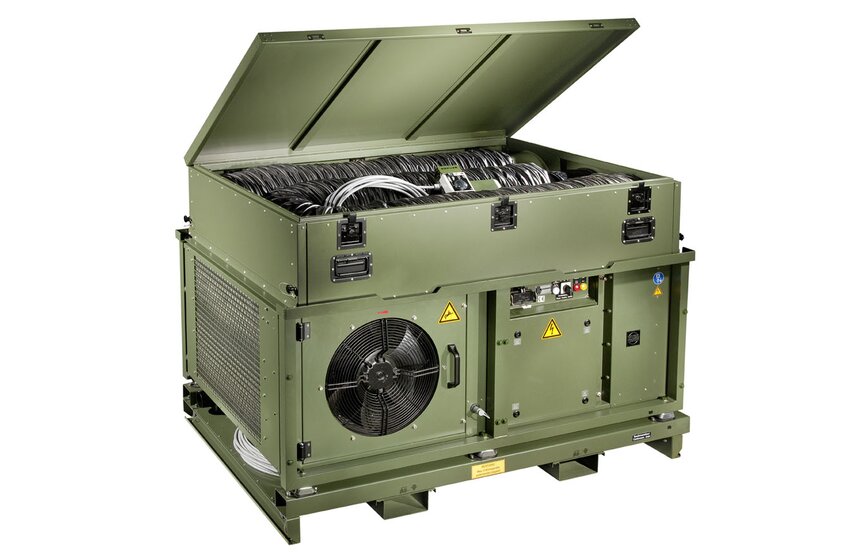

  • Multifunctional transport box for HVAC unit and accessories
  • External air filter box with H13 filter
  • Soft starter for low starting current
