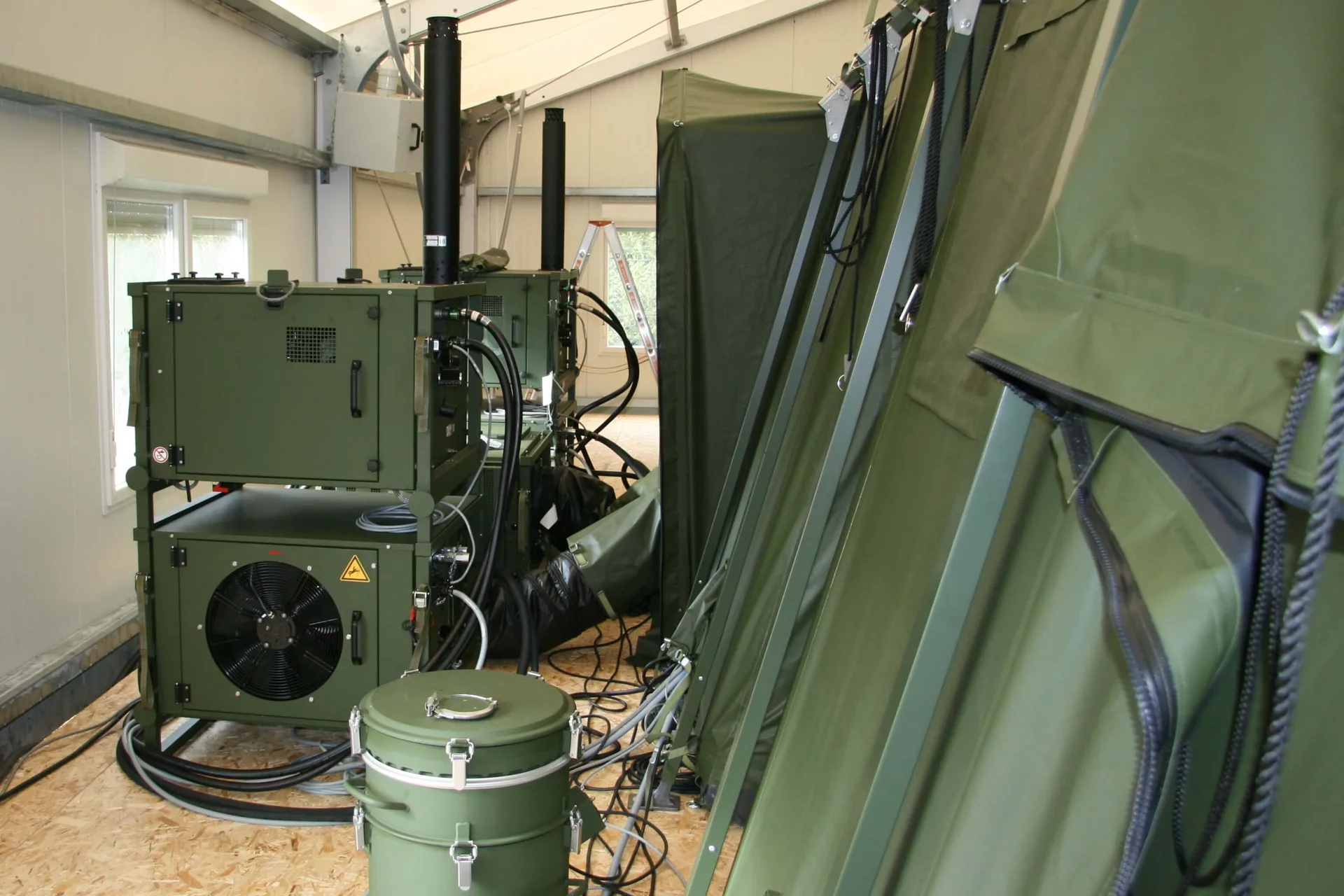

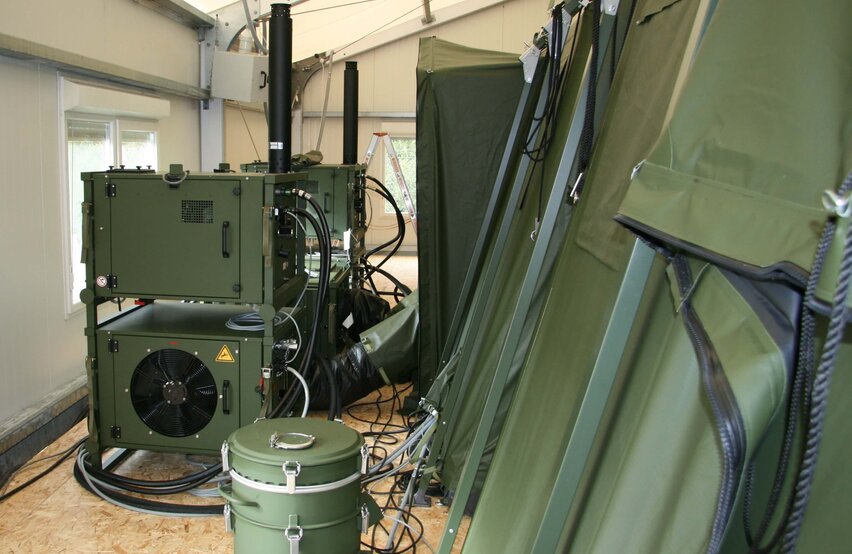

• Installed ZKB MCRS1 tent climate system by Weiss Defence with modular units, air hoses and exhaust pipes

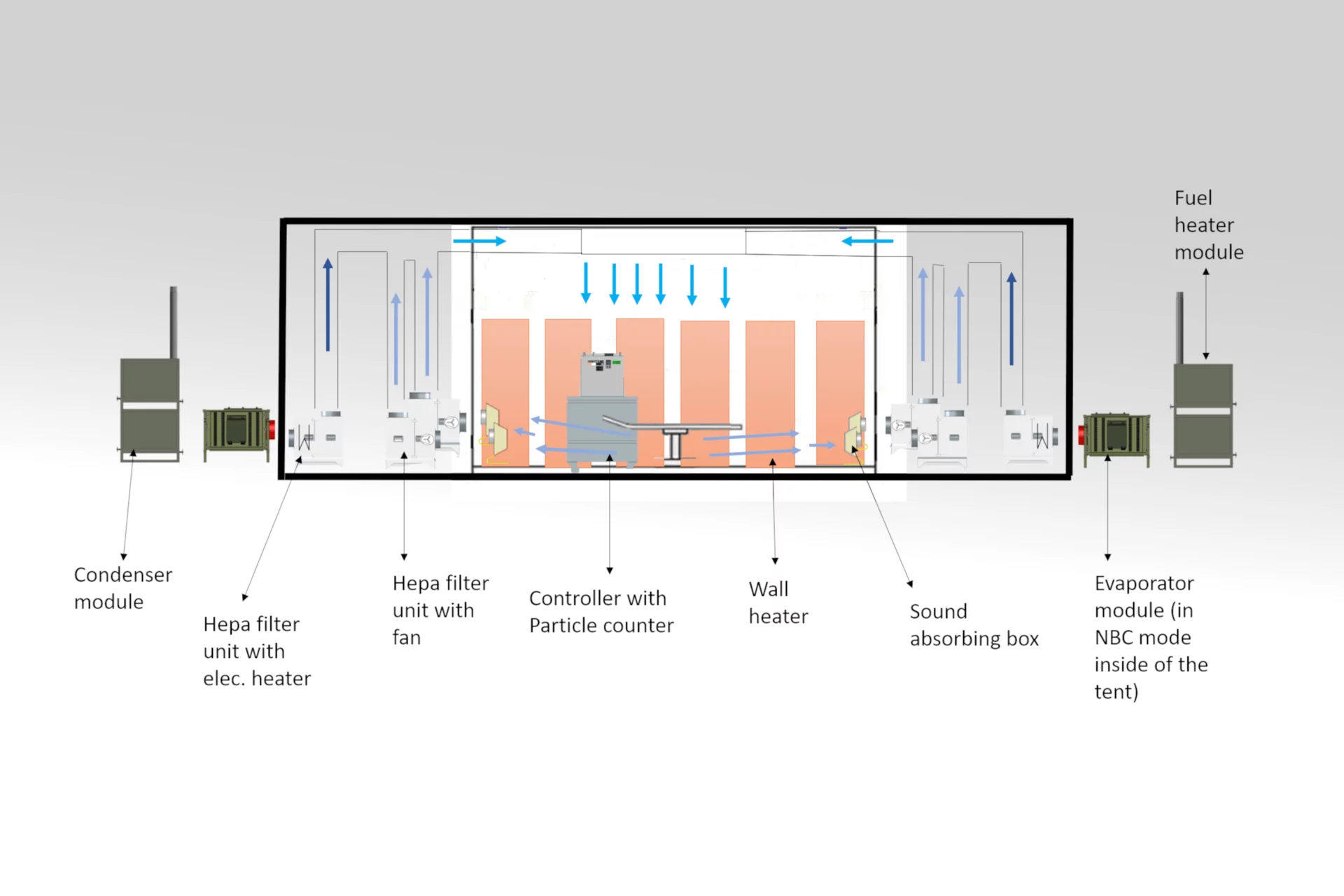

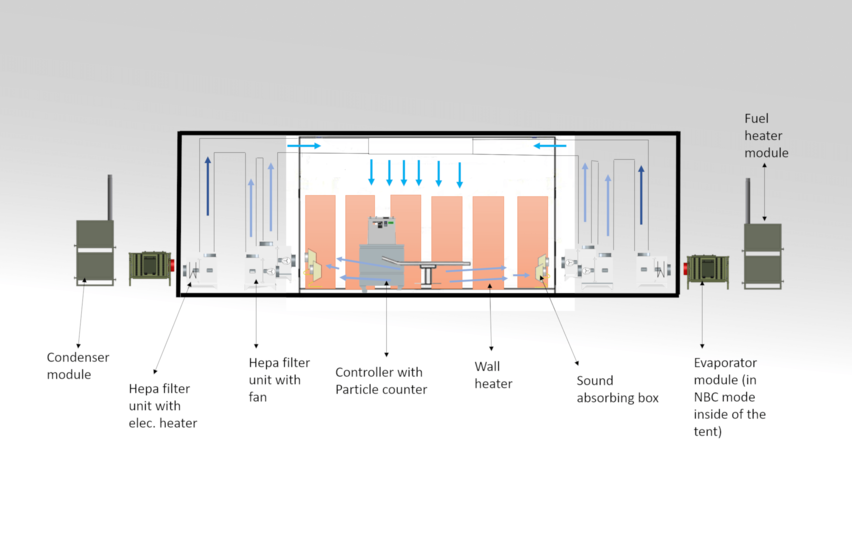

  • System diagram of the ZKB MCRS1 by Weiss Defence with airflow, HEPA filters, heating and cooling modules for tent operation

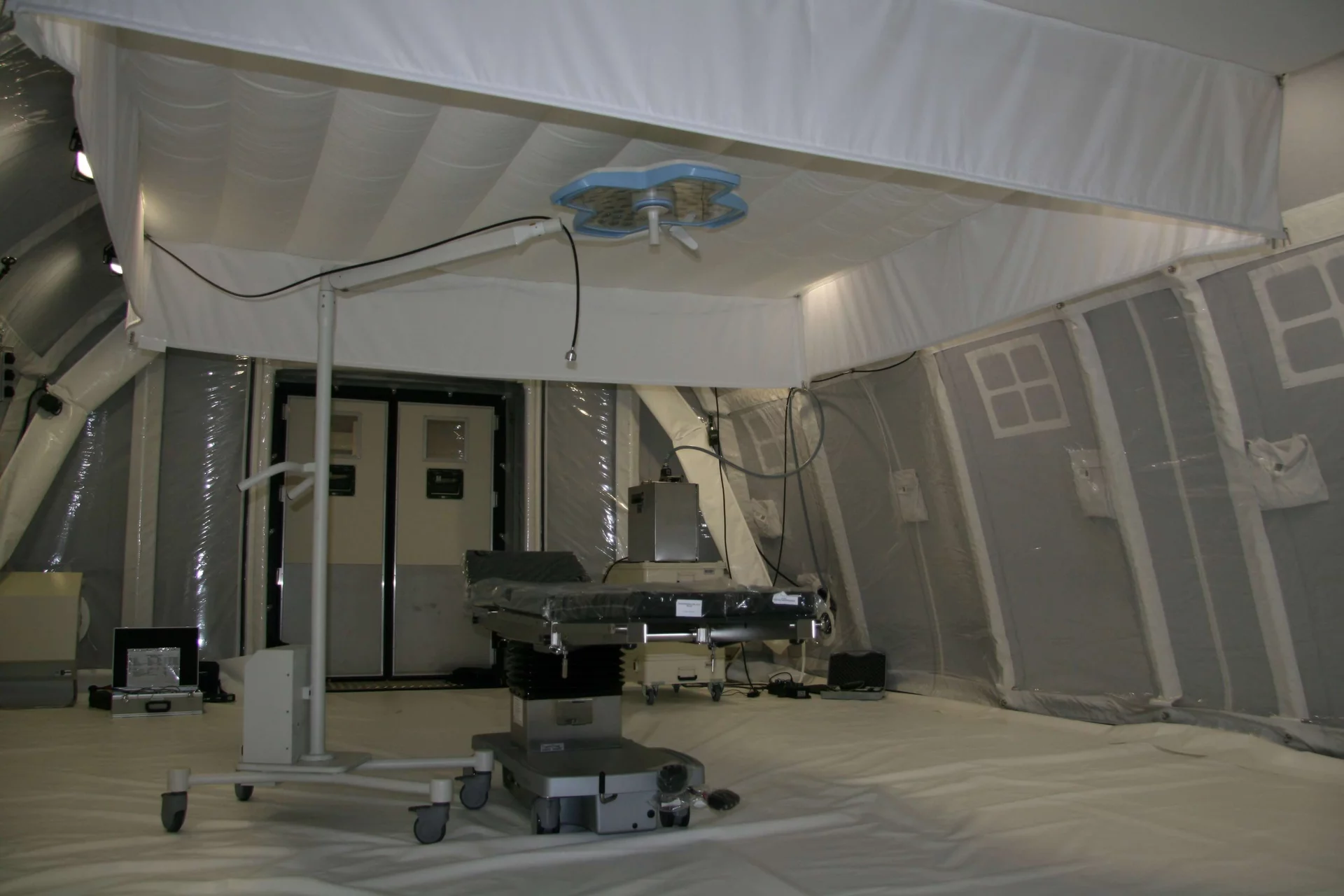

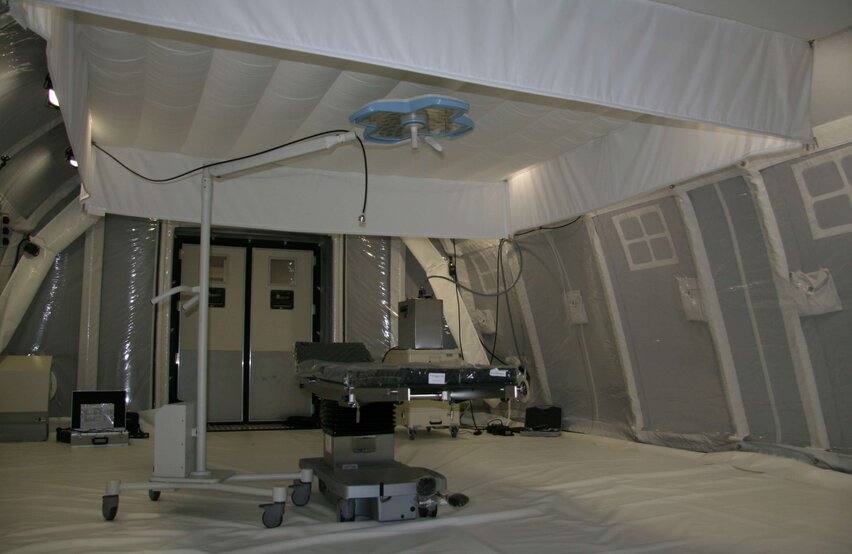

  • Medical tent interior with controlled climate conditions using the ZKB MCRS1 system by Weiss Defence

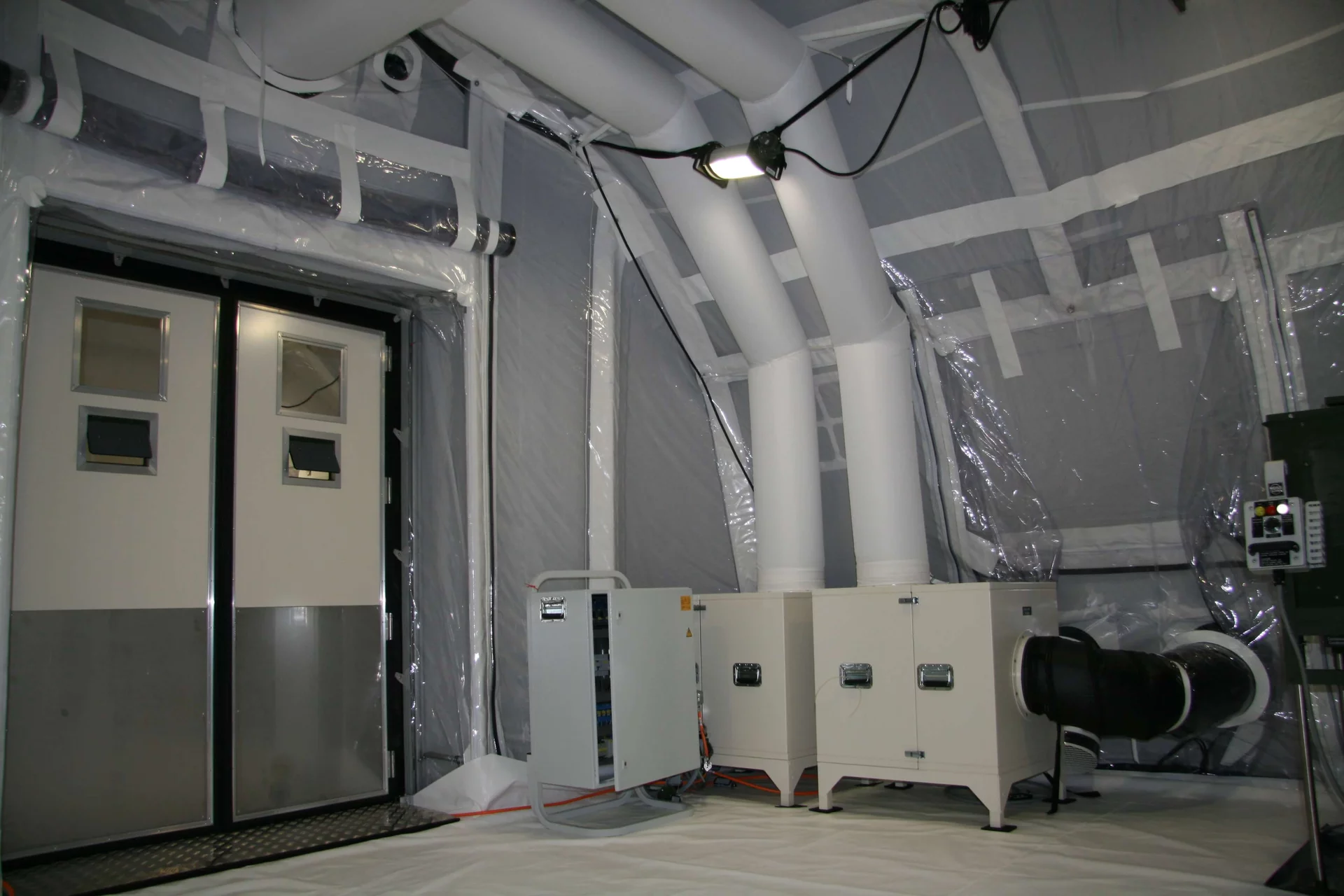

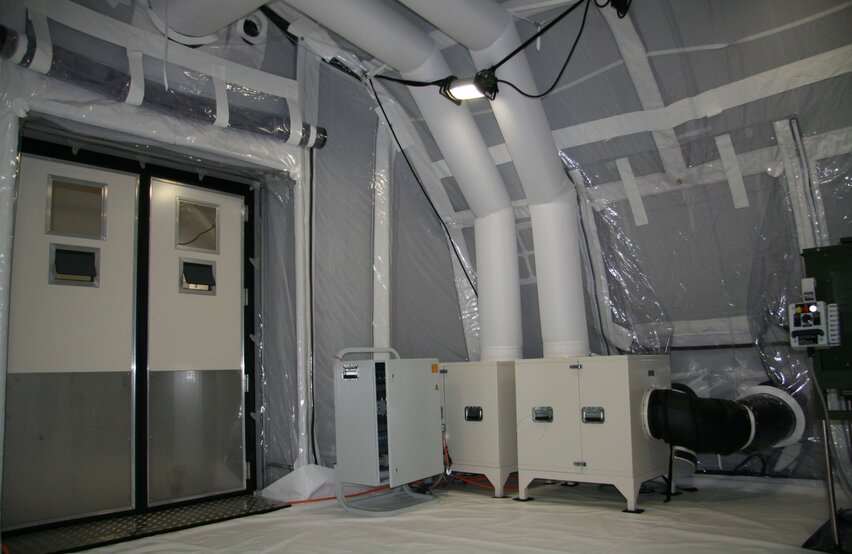

  • Tent interior with installed air distribution and filtration technology of the ZKB MCRS1 by Weiss Defence

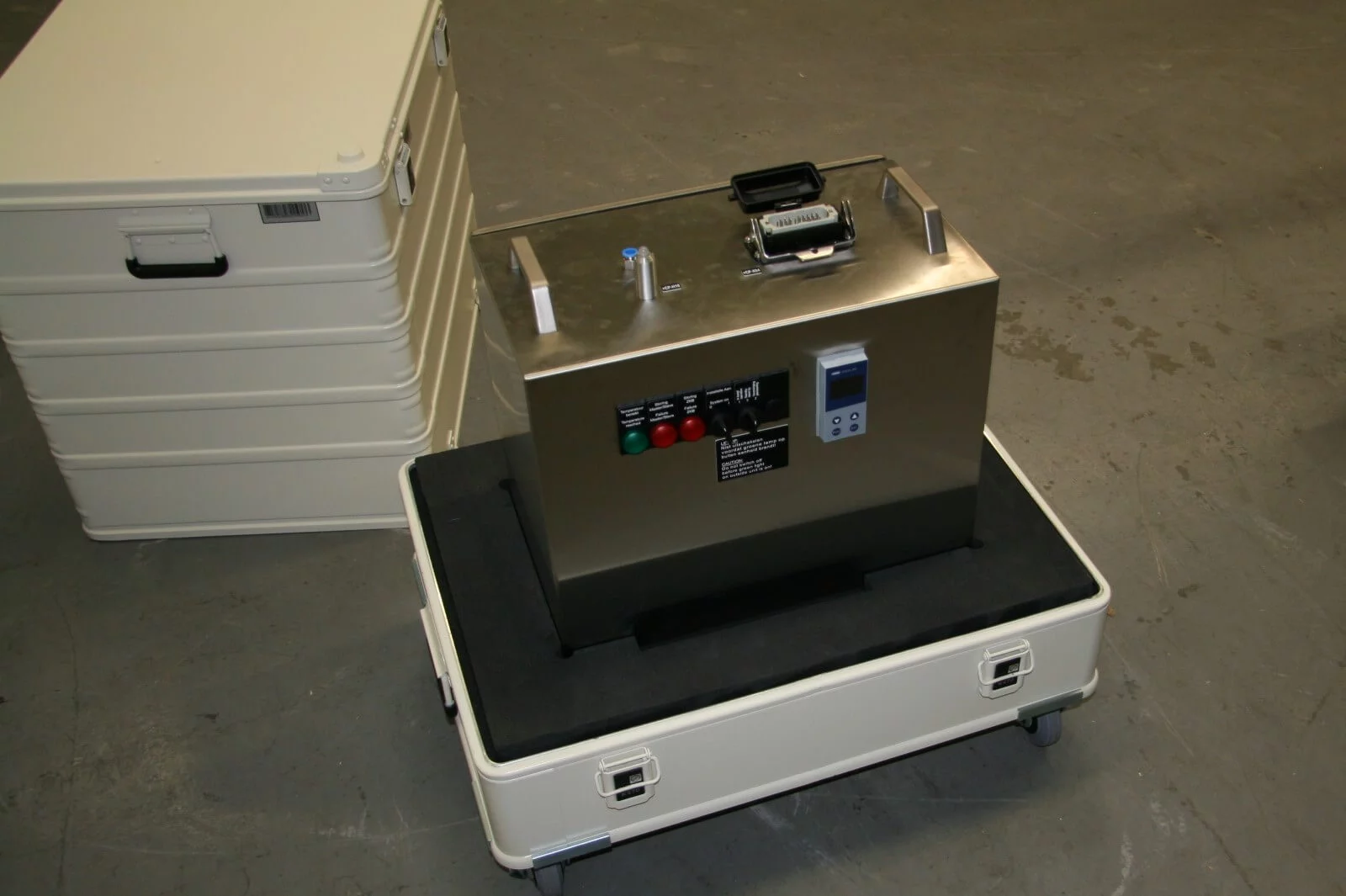

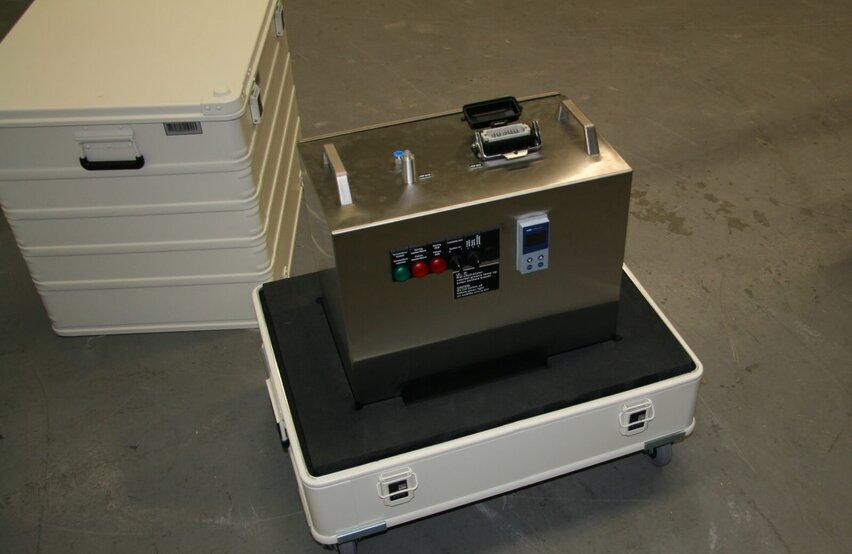

  • Mobile control unit of the ZKB MCRS1 by Weiss Defence in a rugged transport case with control panel and display
Downloads

ZKB MCRS1

Key Facts:
Application: Tent air conditioning for cleanroom conditions
Cooling capacity: 14 kW
Heating capacity: 30 kW
Filter class: H13 Hepa Filter

Description:
The mobile cleanroom system type ZKB MCRS1 is used for cooling, heating, ventilating and filtering air in operating tents of military hospitals.

The ZKB MCRS1 system consists of air-conditioning units, separate filter systems, fuel heaters, fans and optimised air ducts combined to form a coherent system. The system fulfils the air quality of DIN 1946-4:2008-12 for operating tents of class 1a even under extreme ambient conditions.

The system is designed for extreme operating temperatures from -32 °C up to +55 °C and can be used in different climate zones such as A1 to A3, B1 to B3, C0 and C1 in accordance to STANAG 2895.

Please contact us for further information.
